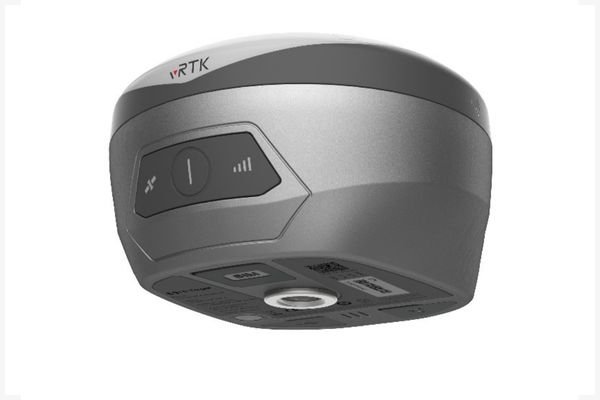

vRTK GNSS RTK System
Equipped with professional dual cameras, vRTK is Hi-Target’s first lightweight and innovative visual RTK receiver product, which not only enables non-contact image surveying, breaking through the objective constraints of previous work but also improves the speed of stakeout with the function of Live View Stakeout. It greatly improves the work efficiency of engineering users
Downloads:
-
Warranty 1 year
-
Free 14-Day returns
Description

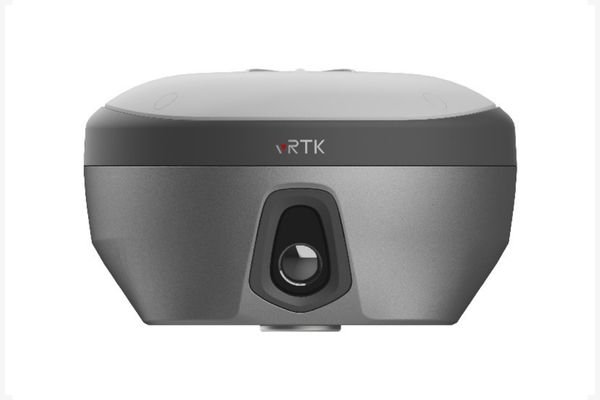

Image Positioning Technology
The new image survey function achieves non-contact measurement, which greatly enhances the available range of GNSS, realizing more efficient and safe operation. Based on Android’s high-performance image processing technology, vRTK with a camera for the rearview, can be used to obtain precise coordinates in real-time, in the range of 2-15 meters, with an accuracy of 2-4 cm
Strong Signal and High-quality Data
- A new generation GNSS SOC chip with 1408 channels, supports new frequency points B1C, B2a, and B2b RTK decoding for Beidou-3 Satellites.
- Introduction of multi-frequency anti-jamming technology and multi-step adaptive filtering technology to ensure strong signals, high-quality data, fast fix, and high accuracy.
Abundant Industry Data Results
- Abundant types of data results meet the needs of different industry applications.
- Compatible with the mainstream modelling software to attain point cloud and 3D modelling in one step.
Specification
Overview
| Weight | 1 kg |
|---|---|
| Brand |
Hi-Target |
| Channels |
1408 |
|---|---|
| Tilt survey accuracy |
8mm+0.7mm/°tilt |
| Image stakeout accuracy |
2 cm |
| Image survey accuracy |
2 cm – 4 cm |
| Size |
Φ130mm×79mm |
| Satellite tracking |
BDS/ GPS/ GLONASS/ GALILEO/ QZSS/ IRNSS/ SBAS |
| Memory Storage |
Built-in 8GB |
| Accuracy |
H: RTK+10mm / V: RTK+20mm |
