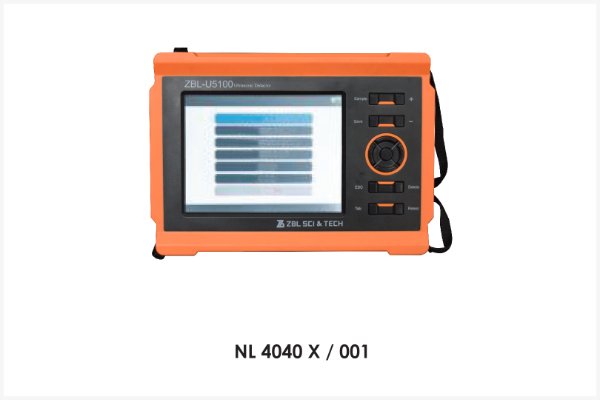

Ultrasonic Detector ZBL NL 4040 X / 001
Concrete Detector
Quick detection of integrity of foundation pile continous wall with Ultrasonic penetration method.
-
Warranty 1 year
-
Free 14-Day returns
Description
Concrete Detector
Quick detection of integrity of foundation pile continous wall with Ultrasonic penetration method.
Application :
- For testing the integrity of foundation pile (”Pile Test”)
- For testing compressive strength of concrete (”Strength Test”)
- For testing defect and cavity in cultural member (”Defect Test”)
- For testing crack depth of concrete surface (”Crack Test”)
Features :
- The test result is available and the graphic distribution of abnormal points in each profile is shown
at any time. - Sampling delay and amplification factor may be adjusted at any time.
- With true color highlight LCD,waveform,wave speed and amplitude of multiple tested profiles maybe clearly observed on site data, curve,wave train figure and schematic graph of pile integrity of all test points in all profiles may be checked at any time, the quality of whole pile in
the test is very clear. - It adopts WinCE operation system with press screen and user-friendly interface, which is simply,
easy to learn and convenient to operate. - With high-capacity SD Card, there is no need to worry about the storage space of test data
- Built in high-performance and capacity lithium battery may satisfy fieldwork for long time.
- Various USB ports may be used for data transmission or software update within the instrument or
external units such as mouse or keyboard. - Test data of the same project is saved under the folder created with the title of the project for
easy and reliable management.
Specification
Overview
| Weight | 1.36 kg |
|---|---|
| Dimensions | 21 × 14.9 × 6 cm |
| Brand |
Nl Test |
| Model number |
NL 4040 X / 001 |
