ADR Touch SOLO 2000 Semi-Automatic Compression Machine with Digital Readout

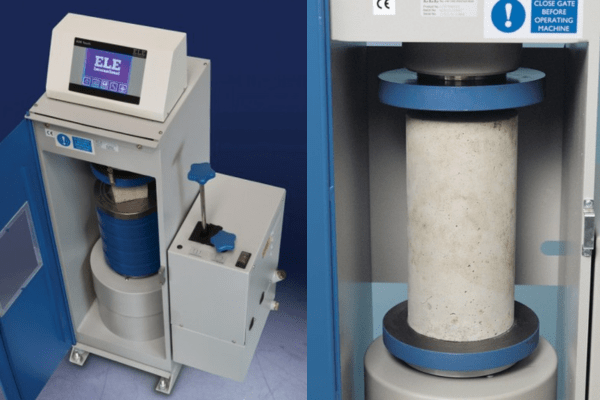

Incorporating the ADR Touch digital readout, the machines are designed to test cubes and cylinders in accordance with most International Standards. Supplied fitted for cylinder testing with safety gates. When used for cube testing appropriate distance pieces according to the size of specimen to be tested are required and must be ordered separately.



Downloads:

SKU: CT003

  • Pick up from our Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

TBD

  • Warranty 1 year
  • Free 14-Day returns

Description

The Standard range of compression machines has been designed to meet the need for a simple, economic and reliable means of testing concrete.

Whilst delivering all the features and reputation of the established ADR Series with its extensive design history, the new and improved user interface provides a high quality platform for testing that enhances the performance of ELE’s compression machines.
New, sophisticated electronics further the benefits of simplified operation, whilst delivering the highest levels of accuracy in testing concrete and cement/mortar samples, satisfying the needs of Quality Control Managers, Lab Managers and Technicians.

Accuracy & Savings

The new ADR Touch Series, with 145mm (5.7”) high resolution QVGA touch screen interface and intuitive menu-driven operation, reduces the time taken to set up the machine and perform tests, reducing the time to train staff by up to 25%.

• Up to 6 sample types can be set as favorites, enabling one-touch set up for repeat testing.
• Full, QWERTY touch pad for input of test data.

Most testing errors produce lower strength results. Noncompliant loading rates can generate errors in measured strength. The user interface includes real-time display of load vs. time, further ensuring accurate and consistent test results and providing “goodness of test” data to improve traceability in your QC operations.

Traceability & Data Quality

The ADR range now provides improved data quality and traceability in due diligence cases – it is now possible to demonstrate traceability all the way from the machine/user to the accreditation body, increasing your reputation and peace of mind – all test results now come complete with the machine serial number attached.

• Enhanced USB data communications between PC and machine – eliminating the need for download software.
• Two gigabytes of storage memory.
• Full customization of sample sizes – stress calculations are automatically recalculated.

User Safety

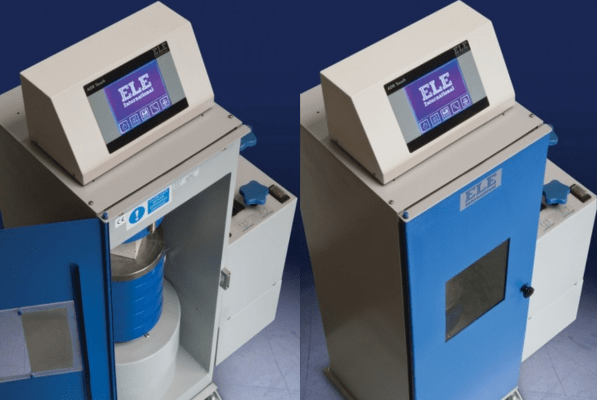

With full safety gates as standard, total systems diagnostics, ram run-out switches and overload warnings ensure the safety of your employees and the reliability of your machine.

Specification

Overview

Weight 595 kg
Dimensions 41 × 63 × 120 cm
Brand

ELE International

Frame Type

Welded

Capacity

2000kN

Max Vertical Clearance (mm)

340

Max Horizontal Clearance (mm)

325

Platen Sizes (mm)

Lower, Upper 222mm dia

Max Ram Travel (mm)

50

Cubes (Concrete) (mm)

Up to 150

Cylinders (Concrete) (mm)

Up to 160 x 320

Blocks

N/A

Flexural Testing

Via Flexural Frame

TFV & ACV

Yes

Rapid Approach

No

Hydraulic Pump

Variable Output

Resolution

145 mm (5.7”) Touch Screen with Graphical Display

Load v Time, Goodness of Test

Yes

Analysis of Trend Data

Yes

Multiple Language Support

4

External PC

Yes, using custom PC App

Download Test Data

Yes, using custom PC App

Printer

Optional External Printer + Print from PC

Memory Storage

2GB = Stores over a million tests + SD card
