Showing all 12 results
Filter by brands
1000kN Electro-Hydraulic Servo Control Universal Testing Machine NL 6000 X / 013N
In stock
| Brand |
Nl Test |
|---|---|
| Model number |
NL 6000 X / 013N |
| Load Capacity |
1000 kN |
| Machine Class |
Class 1 |
| Max. Compression Space |
600 mm |
| Max. Tensile Space |
700 mm |
| Piston Stroke |
200 mm |
| Relative Error of Indicated Value |
±1% |
| Effective Measurement Range |
1% – 100 % F S (Full Range without binning) |
| Deformation Measurement Range |
1% – 100 % F S |
| Relative Error of Deformation Indication |
±1% |
| Relative Error of Displacement Indication |
±1% |
| Relative Error of Stress Rate Control |
±2% |
| Relative Error of Displacement Rate Control |
±1% |
| Strain Rate Control Adjustment Range |
0.00025/s / 0.0025/s |
| Relative Error of Strain Rate Control |
±2% |
| Force, Deformation, & Displacement Retention Control |
0.3% – 100% F S |
| Relative Error of Force, Deformation & Displacement Retention Control |
≤1% |
| Girder Lifting Speed |
320 mm / min |
| Effective Distance Between 2 Column |
455 mm |
| Round Specimen Size |
Ø14 – Ø45 mm |
| Flat Specimen Size |
Max. 40 mm Thick |
| Size of Compression Platen |
Ø225 mm |
| Dimension (Frame) |
810 x 700 x 2350 mm (LxWxH) |
| Dimension ( Control Console) |
790(L) x 730(W) x 1600(H) mm |
| Weight (Control Console) |
300 kg |
| Weight ( Frame) |
2650 kg |
| Voltage Supply |
380~415V, 3Ph,4kW,8.1A, 50/60 Hz |
100kN Servotec Fully Automatic Universal Testing Machine TT 6000 X / 018N
In stock
| Weight | 500 kg |
|---|---|
| Dimensions | 91 × 48 × 200 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 018N |
| Max Test Force |
100 kN |
| Structure Type |
Twin Rigid Column with Twin High Precision Ball Screw |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
440 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 – 250 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
10kN Servotec Fully Automatic Universal Testing Machine TT 6000 X / 032N
In stock
| Weight | 210 kg |
|---|---|
| Dimensions | 76 × 55 × 180 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 032N |
| Max Test Force |
10kN |
| Structure Type |
Twin Rigid Column with Twin High Precision Ball Screw |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
350 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 – 500 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
2000kN Electro-Hydraulic Servo Control Universal Testing Machine NL 6000 X / 016H
In stock
| Brand |
Nl Test |
|---|---|
| Model number |
NL 6000 X / 016H |
| Max. Test Capacity |
2000 kN |
| Machine Class |
Class 1 |
| Relative Error of Indicated Value |
±1% |
| Effective Measurement Range |
1% – 100 % F S (Full Range without binning) |
| Deformation Measurement Range |
1% – 100 % F S |
| Relative Error of Deformation Indication |
±1% |
| Relative Error of Displacement Indication |
±1% |
| Relative Error of Stress Rate Control |
±2% |
| Relative Error of Displacement Rate Control |
±1% |
| Strain Rate Control Adjustment Range |
0.00025/s / 0.0025/s |
| Relative Error of Strain Rate Control |
±2% |
| Force, Deformation, & Displacement Retention Control |
0.3% – 100% F S |
| Relative Error of Force, Deformation & Displacement Retention Control |
≤1% |
| Girder Lifting Speed |
350 mm / min |
| Max. Compression Space |
650 mm |
| Max. Tensile Space |
800 mm |
| Effective Distance Between 2 Column |
590 mm |
| Piston Stroke |
250 mm |
| Round Specimen Size |
Ø20 – Ø70 mm |
| Flat Specimen Size |
Max. 50 mm Thick |
| Size of Compression Platen |
240 mm x 240 mm |
| Dimension (Frame) |
1200(L) x 900(W) x 2940(H) mm |
| Dimension ( Control Console) |
790(L) x 730(W) x 1600(H) mm |
| Weight (Control Console) |
300 kg |
| Weight ( Frame) |
6000 kg |
| Voltage Supply |
380~415V, 3Ph,4kW,8.1A, 50/60 Hz |
200kN Servotec Fully Automatic Universal Testing Machine TT 6000 X / 024N
In stock
| Weight | 500 kg |
|---|---|
| Dimensions | 91 × 48 × 200 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 024N |
| Max Test Force |
200 kN |
| Structure Type |
Twin Rigid Column with Twin High Precision Ball Screw |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
440 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 – 250 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
380 ~ 415V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp |
20kN Servotec Fully Automatic Universal Testing Machine TT 6000 X / 020N
In stock
| Weight | 220 kg |
|---|---|
| Dimensions | 60.6 × 40.5 × 162 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 020N |
| Max Test Force |
20kN |
| Structure Type |
Twin Rigid Column with Twin High Precision Ball Screw |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
350 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 – 500 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
300kN Electro-Hydraulic Servo Control Universal Testing Machine TT 6000 X / 015H
In stock
| Brand |
Nl Test |
|---|---|
| Model number |
NL 6000 X / 015H |
| Load Capacity |
300 kN |
| Machine Class |
Class 1 |
| Max. Compression Space |
600 mm |
| Max. Tensile Space |
700 mm |
| Piston Stroke |
200 mm |
| Relative Error of Indicated Value |
±1% |
| Effective Measurement Range |
1% – 100 % F S (Full Range without binning) |
| Deformation Measurement Range |
1% – 100 % F S |
| Relative Error of Deformation Indication |
±1% |
| Relative Error of Displacement Indication |
±1% |
| Relative Error of Stress Rate Control |
±2% |
| Relative Error of Displacement Rate Control |
±1% |
| Strain Rate Control Adjustment Range |
0.00025/s / 0.0025/s |
| Relative Error of Strain Rate Control |
±2% |
| Force, Deformation, & Displacement Retention Control |
0.3% – 100% F S |
| Relative Error of Force, Deformation & Displacement Retention Control |
≤1% |
| Girder Lifting Speed |
320 mm / min |
| Effective Distance Between 2 Column |
375 mm |
| Round Specimen Size |
Ø10 – Ø32 mm |
| Flat Specimen Size |
Max. 20 mm Thick |
| Size of Compression Platen |
Ø150 mm |
| Dimension (Frame) |
800(L) x 600(w) x 2100(H) mm |
| Dimension ( Control Console) |
790(L) x 730(W) x 1600(H) mm |
| Weight (Control Console) |
300 kg |
| Weight ( Frame) |
1850 kg |
| Voltage Supply |
380~415V, 3ph, 1.5kW, 6.1A, 50/60 Hz |
300kN Servotec Fully Automatic Universal Testing Machine TT 6000 X / 023N
In stock
| Weight | 500 kg |
|---|---|
| Dimensions | 91 × 48 × 200 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 023N |
| Max Test Force |
300 kN |
| Structure Type |
Twin Rigid Column with Twin High Precision Ball Screw |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
440 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 – 250 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
380 ~ 415V, 1500W, 5A, 1Ph, 50/60 Hz, 2Hp |
50kN Servotec Fully Automatic Universal Testing Machine TT 6000 X / 019N
In stock
| Weight | 250 kg |
|---|---|
| Dimensions | 49 × 79.5 × 175 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 019N |
| Max Test Force |
50 kN |
| Structure Type |
Twin Rigid Column with Twin High Precision Ball Screw |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
400 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 – 500 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
600kN Electro-Hydraulic Servo Control Universal Testing Machine TT 6000 X / 014HS
In stock
| Brand |
Nl Test |
|---|---|
| Model number |
NL 6000 X / 014HS |
| Load Capacity |
600 kN |
| Machine Class |
Class 1 |
| Max. Compression Space |
600 mm |
| Max. Tensile Space |
700 mm |
| Piston Stroke |
200 mm |
| Relative Error of Indicated Value |
±1% |
| Effective Measurement Range |
1% – 100 % F S (Full Range without binning) |
| Deformation Measurement Range |
1% – 100 % F S |
| Relative Error of Deformation Indication |
±1% |
| Relative Error of Displacement Indication |
±1% |
| Relative Error of Stress Rate Control |
±2% |
| Relative Error of Displacement Rate Control |
±1% |
| Strain Rate Control Adjustment Range |
0.00025/s / 0.0025/s |
| Relative Error of Strain Rate Control |
±2% |
| Force, Deformation, & Displacement Retention Control |
0.3% – 100% F S |
| Relative Error of Force, Deformation & Displacement Retention Control |
≤1% |
| Girder Lifting Speed |
320 mm / min |
| Effective Distance Between 2 Column |
455 mm |
| Round Specimen Size |
Ø13 – Ø40 mm |
| Flat Specimen Size |
Max. 20 mm Thick |
| Size of Compression Platen |
Ø200 mm |
| Dimension (Frame) |
900(L) x 700(W) x 2390(H) mm |
| Dimension ( Control Console) |
790(L) x 730(W) x 1600(H) mm |
| Weight (Control Console) |
300 kg |
| Weight ( Frame) |
2650 kg |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |

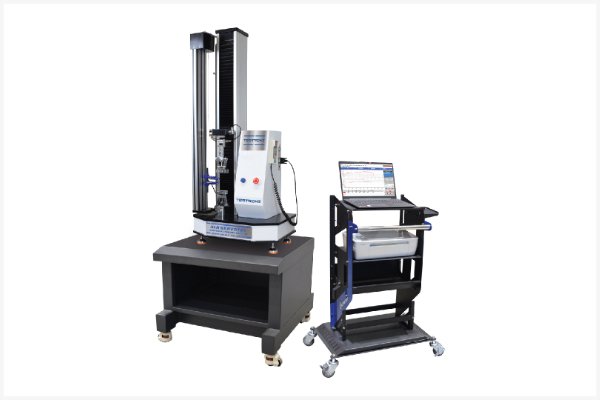

Servotec Fully Automatic Universal Testing Machine 3kN TT 6000 X / 021N
In stock
| Weight | 120 kg |
|---|---|
| Dimensions | 62 × 40 × 136 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 021N |
| Max Test Force |
3 kN |
| Structure Type |
Single Rigid Column with Single High Precision Ball Screw (Desk Top Version) |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
350 mm |
| Test Force Accuracy |
±0.8% |
| Test Speed Range |
0.01 – 500 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
Servotec Universal Testing Machine 3kN TT 6000 X / 021ND
In stock
| Weight | 120 kg |
|---|---|
| Dimensions | 62 × 40 × 136 cm |
| Brand |
Nl Test |
| Model number |
TT 6000 X / 021ND |
| Max Test Force |
3 kN |
| Structure Type |
Single Rigid Column with Single High Precision Ball Screw (Desk Top Version) |
| Trailing Space |
950 mm (exclude fixtures) |
| Width Space |
350 mm |
| Test Force Accuracy |
±0.8% |
| Test Speed Range |
0.01 – 500 mm/min |
| Load Resolution |
1/100 000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5% |
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5% |
| Accuracy of Extenders |
±1 mm |
| Measuring Range |
0.5% – 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Voltage Supply |
220 – 240 V AC, 50 – 60 Hz, 1 ph |
