Showing all 12 results

Asphalt Testing Equipment

Asphalt Binder Analyzer (Ignition Method) NL 2002 X / 002

In stock

SKU: ELE0036
Weight 260 kg
Dimensions 85 × 65 × 125 cm
Brand

Nl Test

Model number

NL 2002 X / 002

Maximum Sample Mass

3000g, recommended sample mass 1200-1800g

Weight Detection Accuracy

± 0.1g

Temperature Control Setting Range

100 ˚C ~ 800 ˚C

Temperature Detection Resolution

1.0 ˚C

Temperature Control Accuracy

± 5 ˚C

Ambient Temperature

≤ 35 ˚C

Combustion Chamber Dimensions

300 x 250 x 450 mm

Voltage Supply

415 V, 3 ph, 50 / 60 Hz

Asphalt Rotating Plate Oven NL 2021 X / 001A

In stock

SKU: ELE0035
Weight 69 kg
Dimensions 66 × 74.5 × 119 cm
Brand

Nl Test

Model number

NL 2021 X / 001A

Operating Temperature

163°C

Working Space

400 x 400 x 430 mm

Plate Rotating Speed

5 – 6 r.p.m.

Resolution

0.1°C

Temperature Fluctuation

±0.5°C

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

Digimatic Marshall Stability Compression Tester 50kN NL 2010 X / 008

In stock

SKU: ELE0034
Weight 75 kg
Dimensions 46 × 420 × 80 cm
Brand

Nl Test

Model number

NL 2010 X / 008

Capacity

50kN

Max Vertical Clearance (mm)

270 mm

Max Horizontal Clearance (mm)

285 mm

Testing Speed

50.8 mm / min

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

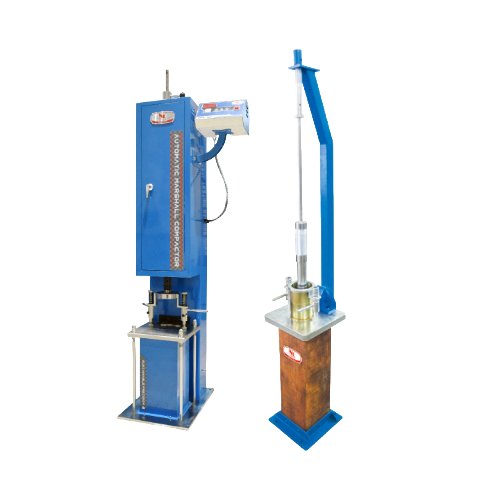

Eco Smartz Automatic Marshall Compactor BS NL 2000 X / 007

In stock

SKU: ELE0029
Weight 340 kg
Dimensions 67 × 58 × 180 cm
Brand

Nl Test

Model number

NL 2000 X / 007

Weight of Hammer

4535 ± 15 g

Height of Hammer Drop

457 mm

Blow Rate

55 – 60 Blow / min

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

Eco Smartz Automatic Marshall Compactor NL 2000 X / 006

In stock

SKU: ELE0028
Weight 166 kg
Dimensions 67 × 58 × 180 cm
Brand

Nl Test

Model number

NL 2000 X / 006

Weight of Hammer

4535 ± 15 g

Height of Hammer Drop

457 mm

Blow Rate

55 – 60 Blow / min

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

Eco Smartz Automatic Motorized Marshall Stability Compression Tester 50 kN NL 2010 X / 007

In stock

SKU: ELE0033
Weight 100 kg
Dimensions 80 × 41 × 107 cm
Brand

Nl Test

Model number

NL 2010 X / 007

Capacity

50kN

Max Vertical Clearance (mm)

300 mm

Max Horizontal Clearance (mm)

270 mm

Testing Speed

50.8 mm / min

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

Eco Smartz Centrifuge Extractor Apparatus (3000g & 1500g)

In stock

SKU: ELE0030
Weight 88.5 kg
Dimensions 61 × 61 × 73 cm
Brand

Nl Test

Model number

NL 2004 X / 005 & 006

Speed

0 – 3600 r.p.m. (Adjustable)

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

Eco Smartz Motorized Marshall Stability Compression 50kN NL 2010 X / 006

In stock

SKU: ELE0032
Weight 118 kg
Dimensions 67 × 54.5 × 140 cm
Brand

Nl Test

Model number

NL 2010 X / 006

Capacity

50kN

Max Vertical Clearance (mm)

730 mm

Max Horizontal Clearance (mm)

270 mm

Testing Speed

50.8 mm / min

Plunger Travel

60 mm

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

ELE Rotatest 3000

In stock

SKU: ELE0031
Brand

ELE International

Model number

45-3815/01

Capacity

3000 g

Manual Marshall Compactor NL 2000 X / 003

In stock

SKU: ELE0027
Weight 66 kg
Dimensions 37 × 30 × 200 cm
Brand

Nl Test

Model number

NL 2000 X / 003

Height of Hammer Drop

457 mm

Weight of Hammer

4.535 kg

Marshall Water Bath NL 2008 X / 002

In stock

SKU: ELE0037
Weight 17 kg
Dimensions 77 × 37 × 30 cm
Brand

Nl Test

Model number

NL 2008 X / 002

Temperature range

From Ambient to +99°C

Accuracy

60 ± 1°C or 37.8 ± 1°C

Capacity

26 Litres

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph

Water Bath 60 Litres NL 2008 X / 004

In stock

SKU: ELE0038
Weight 30 kg
Dimensions 88.5 × 50 × 24 cm
Brand

Nl Test

Model number

NL 2008 X / 004

Temperature range

From Ambient to +99°C

Accuracy

± 1°C / 0.1°C

Capacity

56 Litres

Number of Marshall Specimens

4”/100 mm (24 pcs), 6”/150 mm (12 pcs)

Voltage Supply

220 – 240 V AC, 50 – 60 Hz, 1 ph
